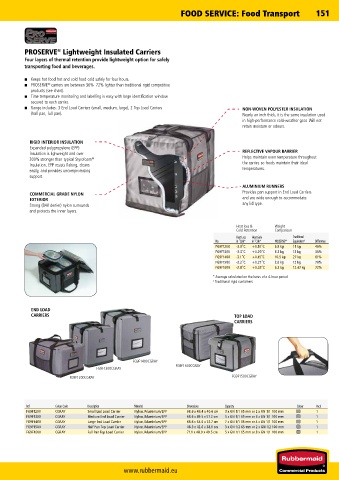

Page 151 - Προϊόντα Rubbermaid

FOOD SERVICE: Food Transport 151

PROSERVE Lightweight Insulated Carriers
®
Four layers of thermal retention provide lightweight option for safely
transporting food and beverages.

■ ■ Keeps hot food hot and cold food cold safely for four hours.
®
■ ■ PROSERVE carriers are between 36%–72% lighter than traditional rigid competitive
products (see chart).
■ ■ Time temperature monitoring and labelling is easy with large identification window
secured to each carrier.
■ ■ Range includes: 3 End Load Carriers (small, medium, large), 2 Top Load Carriers NON-WOVEN POLYESTER INSULATION
(half pan, full pan). Nearly an inch thick, it is the same insulation used
in high-performance cold-weather gear. Will not
retain moisture or odours.

RIGID INTERIOR INSULATION
Expanded polypropylene (EPP)
insulation is lighweight and over REFLECTIVE VAPOUR BARRIER
300% stronger than typical Styrofoam Helps maintain even temperature throughout
®
Insulation. EPP resists flaking, cleans the carrier, so foods maintain their ideal
easily, and provides uncompromising temperatures.
support.
ALUMINIUM RUNNERS
COMMERCIAL GRADE NYLON Provides pan support in End Load Carriers
EXTERIOR and are wide enough to accommodate
Strong (840 denier) nylon surrounds any lid type.
and protects the inner layers.

Heat loss & Weight
Cold Retention Comparison
Heat Loss Heat Gain Traditional
No. in ˚C/Hr* in ˚C/Hr* PROSERVE ® Equivalent † Difference
FG9F1200 -3.0˚C +0.10˚C 5.9 kg 11 kg 46%
FG9F1300 -3.3˚C +0.20˚C 8.3 kg 13 kg 36%
FG9F1400 -3.1˚C +0.15˚C 10.5 kg 27 kg 61%
FG9F1500 -3.2˚C +0.27˚C 2.6 kg 12 kg 78%
FG9F1600 -2.8˚C +0.33˚C 5.3 kg 12.47 kg 72%
* Average calculated on the basis of a 4-hour period
† Traditional rigid containers

END LOAD
CARRIERS TOP LOAD
CARRIERS

FG9F1400CGRAY
FG9F1600CGRAY
FG9F1300CGRAY
FG9F1200CGRAY FG9F1500CGRAY

Ref Colour Code Description Material Dimensions Capacity Colour Pack
FG9F1200 CGRAY Small End Load Carrier Nylon /Aluminium/EPP 68.6 x 46.4 x 40.6 cm 3 x GN 1/1 65 mm or 2 x GN 1/1 100 mm 1
FG9F1300 CGRAY Medium End Load Carrier Nylon /Aluminium/EPP 68.6 x 49.5 x 57.2 cm 5 x GN 1/1 65 mm or 3 x GN 1/1 100 mm 1
FG9F1400 CGRAY Large End Load Carrier Nylon /Aluminium/EPP 68.6 x 54.6 x 73.7 cm 7 x GN 1/1 65 mm or 4 x GN 1/1 100 mm 1
FG9F1500 CGRAY Half Pan Top Load Carrier Nylon /Aluminium/EPP 48.3 x 42.6 x 38.1 cm 3 x GN 1/2 65 mm or 2 x GN 1/2 100 mm 1
FG9F1600 CGRAY Full Pan Top Load Carrier Nylon /Aluminium/EPP 71.1 x 48.9 x 49.5 cm 5 x GN 1/1 65 mm or 3 x GN 1/1 100 mm 1
